PlasmaANNEALER

PlasmaANNEALER is a heat treatment machine for ferrous and non-ferrous wire, rod, tube, and strip. Plasma annealing is equivalent to tube/strand annealing, but with a much greater output. The flame (plasma) in PlasmaANNEALER is directed into the wire with the help of electric field. This allows PlasmaANNEALER to command energy efficiency to up to 90%, whilst providing the output up to 20 times higher than the traditional tube annealers. Inert atmosphere in PlasmaANNEALER is selected to provide surface treatment (cleaning/degreasing), simultaneously during the annealing process.





Summary of PlasmaANNEALER benefits

  • Up to 20x greater output than tube/strand annealer
  • Low process and maintenance costs
  • Wire surface cleanliness and good surface finish due to controlled atmosphere
  • Accuracy of wire softness
  • Inert atmosphere annealing = no need for acid cleaning

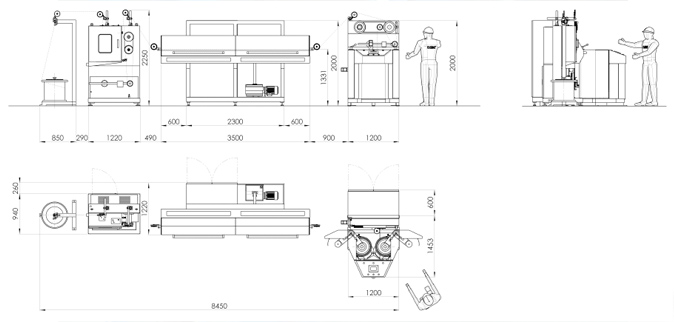

 PlasmaANNEALER

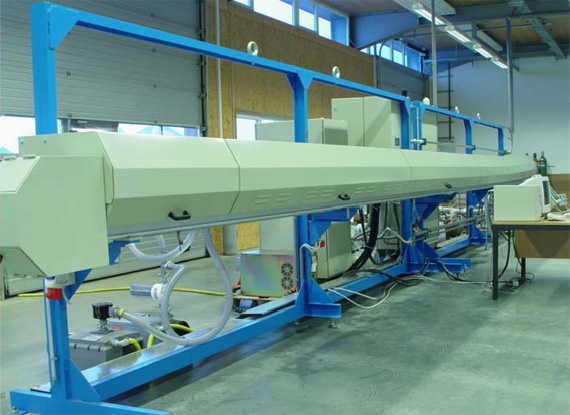

PlasmaANNEALER

PlasmaANNEALER

PlasmaANNEALER Applications --

Nickel, Nickel Alloy and Nitinol wire

  • Nickel, Nickel Alloy and Nitinol wire (Ø 0.1 – 5mm)
  • High-speed annealing (inline with drawing machine)
  • Up to 20 times faster than tube annealer
  • Wire surface cleanliness and good surface finish
  • Inert atmosphere annealing means no need for acid cleaning

Stainless Steel wire (Ø 0.1 – 3mm)

  • High-speed annealing (inline with a drawing machine)
  • Up to 20x faster than tube annealer, subject to annealing/tempering time of the material
  • Wire surface cleanliness and good surface finish
  • Inert atmosphere annealing means no need for acid cleaning

Welding wire (Stainless, Bronze, Nickel Alloys)

  • High-speed annealing with maximum surface cleanliness (inline with drawing machine)
  • Low processing and maintenance costs
  • Inert atmosphere annealing means no need for acid cleaning

Non-Ferrous Alloy wires [Bronze, Brass, Aluminum] (Ø 0.1 – 5mm)

  • High-speed annealing with maximum surface cleanliness
  • Inline with drawing machine on some applications
  • Homogeneous mechanical properties of the finished wire

Magnet wire (Ø 0.1 – 3mm)

  • Annealing with maximum surface cleanliness
  • Homogeneous mechanical properties of the finished wire

Plated wire (Ø 0.1 – 5mm)

  • Copper wire (Ni, Zn, Silver, Gold, Tin plating)
  • Steel wire (Copper, Brass, Cr, Zn, plated)
  • EDM wire (Zn plated Copper, brass wire)
  • Annealing and surface treatment prior to plating

Molybdenum and Tantalum wire (Ø 0.1 – 5mm)

  • High-speed annealing with maximum surface cleanliness
  • Annealing with simultaneous removal of graphite lubricant

Gold and Silver wire (Ø 0.1 – 3mm)

  • High-speed annealing (inline with a drawing machine)
  • Maximum surface cleanliness
